Item number:
G35-1050-T3STD

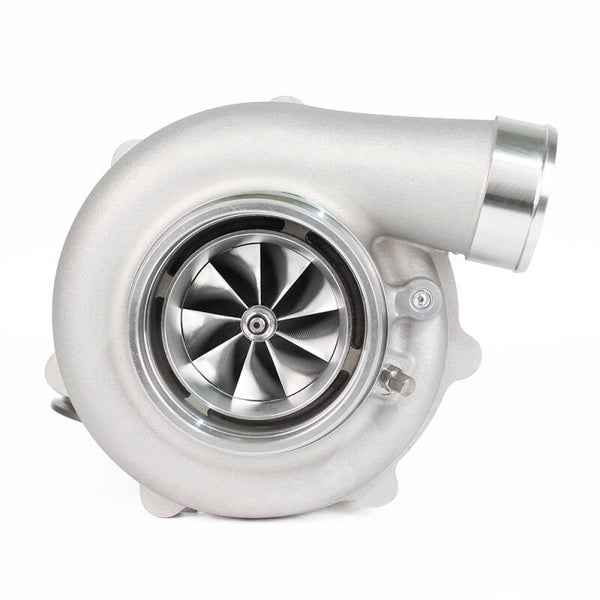

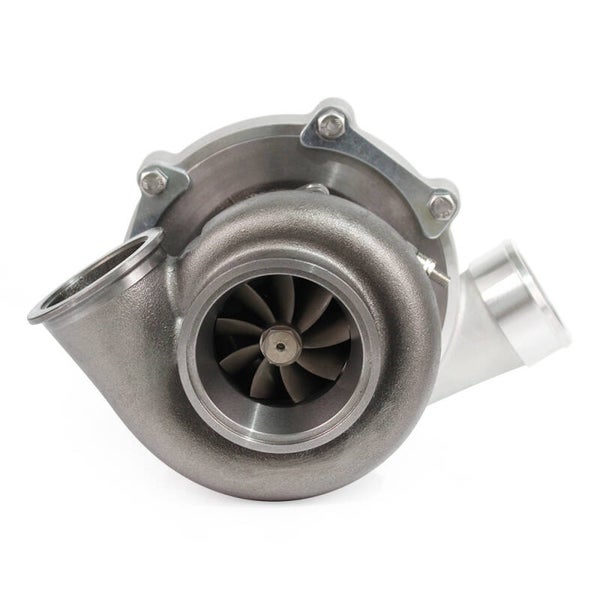

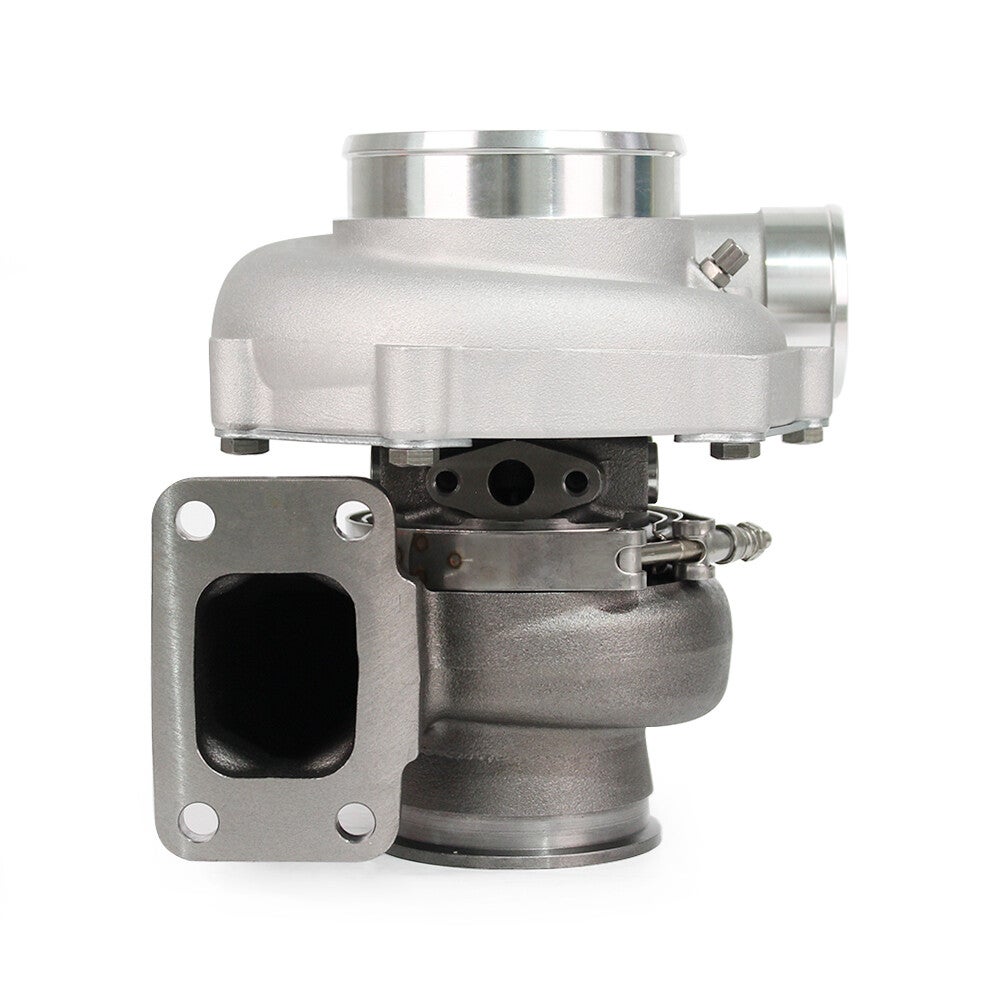

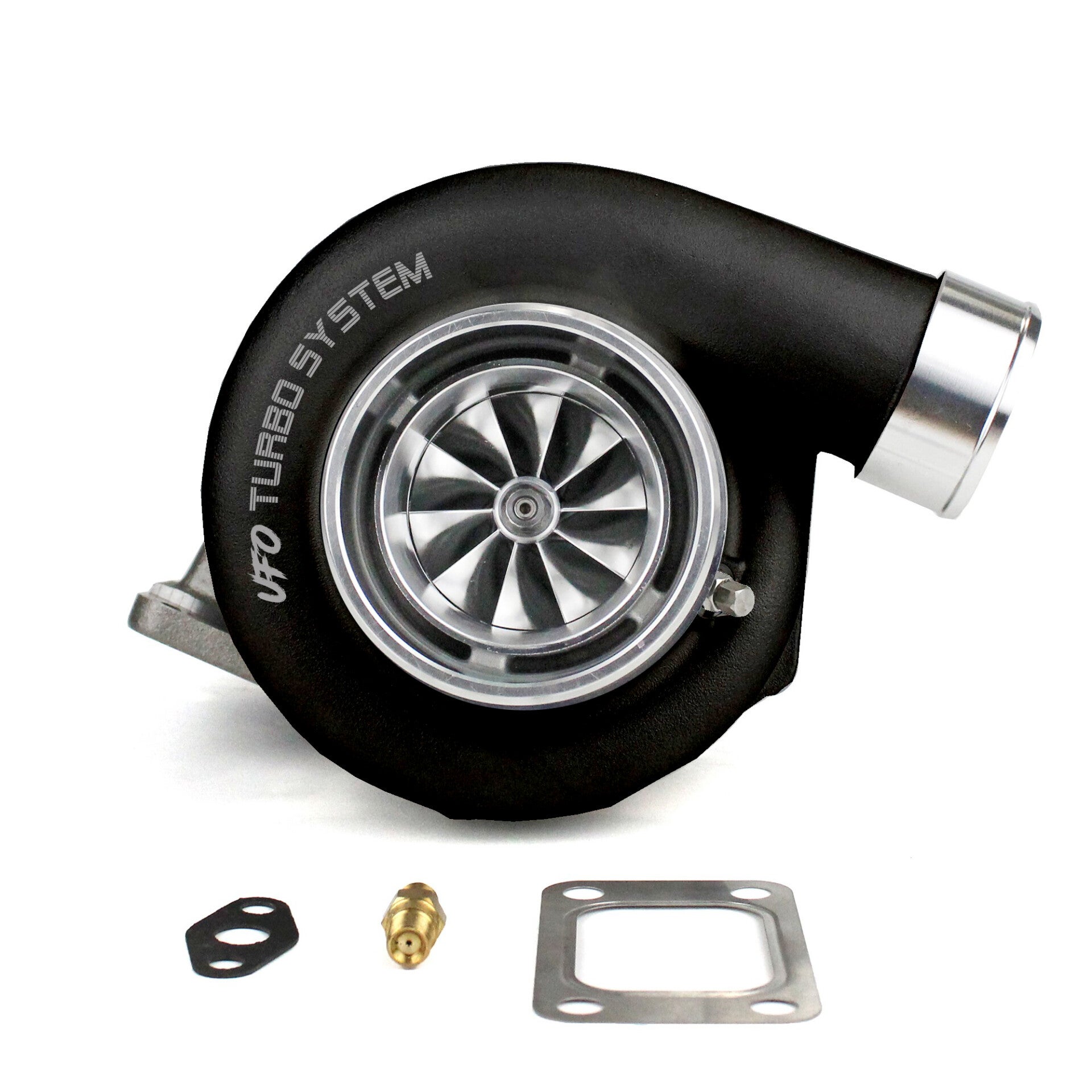

UFO TS G35-1050 Dual Ball Bearing Turbo (700-1050HP)
This Turbo G35-1050 is rated for 700-1050HP.
Suitable for engine capacities 2.5L-5.5L due to its dual setup possibilities.
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 9 Blade G-Aero billet compressor wheel with extended tapered tip technology (Billet OR Point Milled)
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
- Compressor Wheel: 68*84mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2.5” V-Band
- Turbine Inlet: T3/T4 & V-Band
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3
- 3 options for turbine housing:
- T3, 0.82A/R,
- T4, 0.82A/R,
- Dual vband 0.83 A/R, 1.01A/R, 1.21 A/R.
Additional information
Compressor Housing Options:
