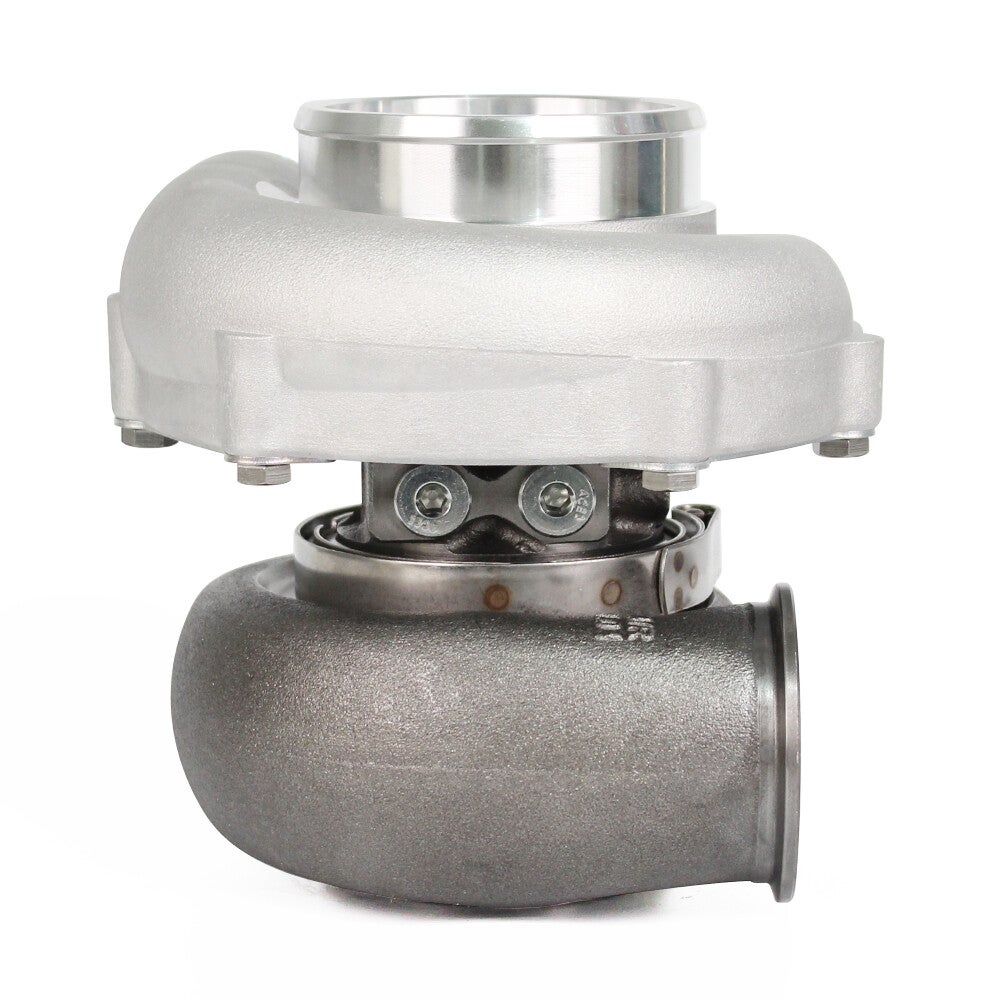

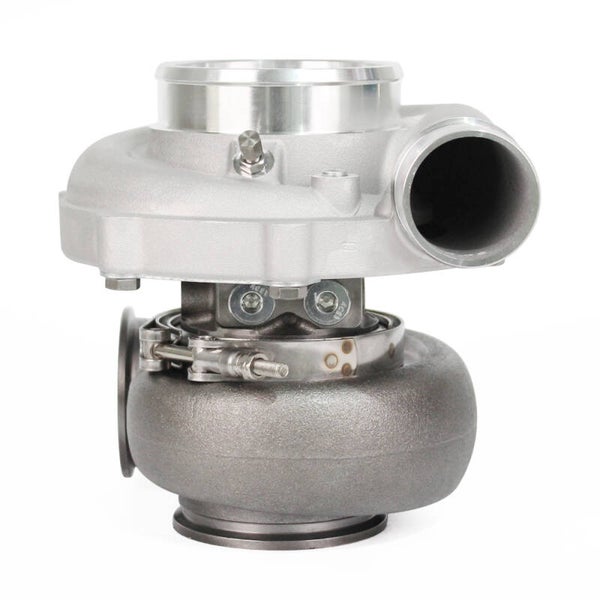

UFO TS G30-770 Dual Ball Bearing Turbo (475-770HP)

UFO TS G30-770 Dual Ball Bearing Turbo (475-770HP)

This G30-770 is rated for 475-770HP.

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion.
• 9 Blade G-Aero Point Milled compressor wheel with extended tapered tip technology. (Billet OR Point Milled)
• 9 Blade G-Aero Inconel 713c turbine wheel.
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port.

Compressor Housing Options:

• Standard

Description

• Compressor Wheel: 58*71mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4 or V-BAND
• Turbine Outlet: V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange
• 5 Options of turbine housing:
• T3 0.82A/R
• T4 0.82A/R
• Dual vband 0.83A/R; 1.01A/R; 1.21A/R.
